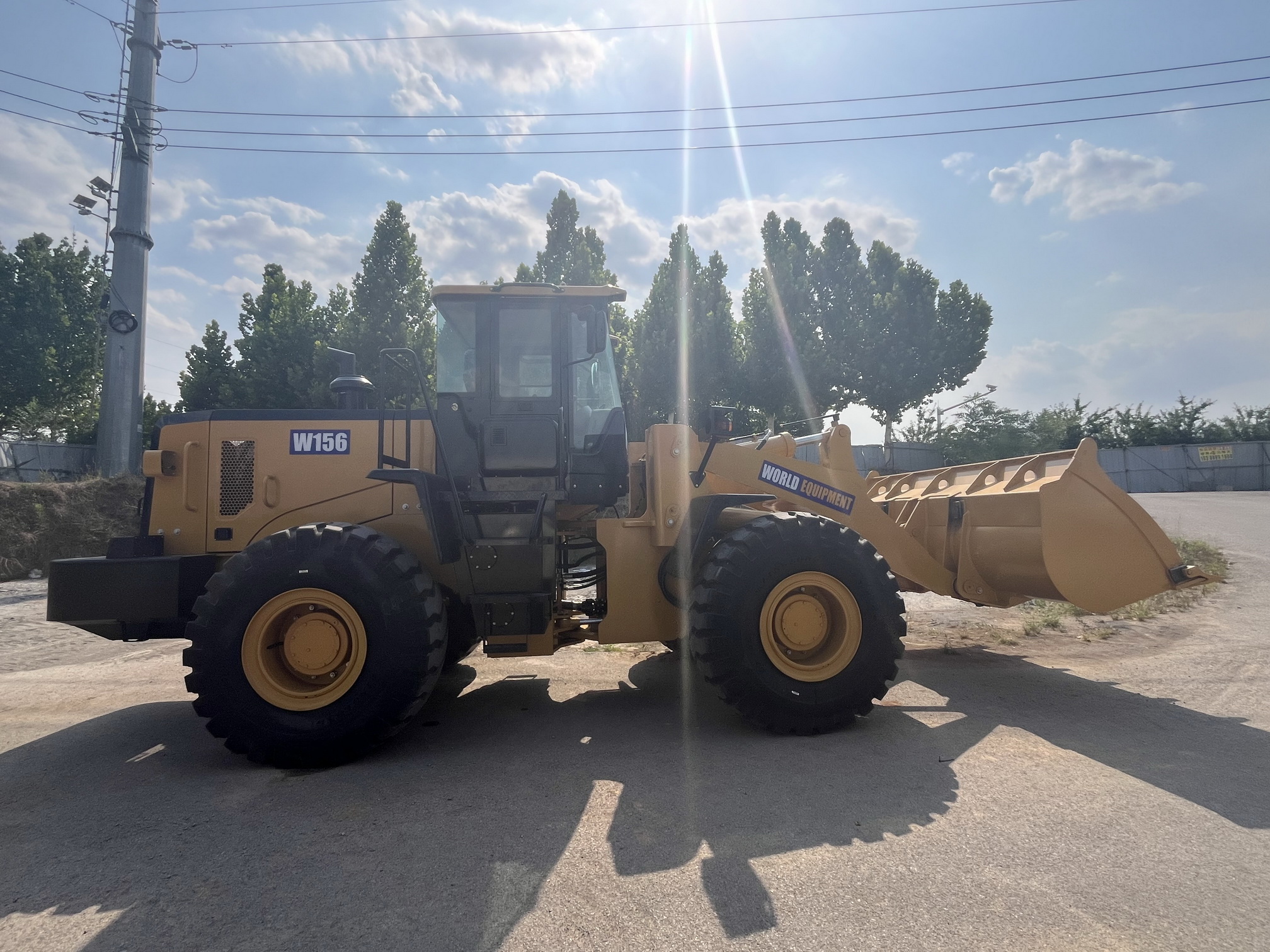

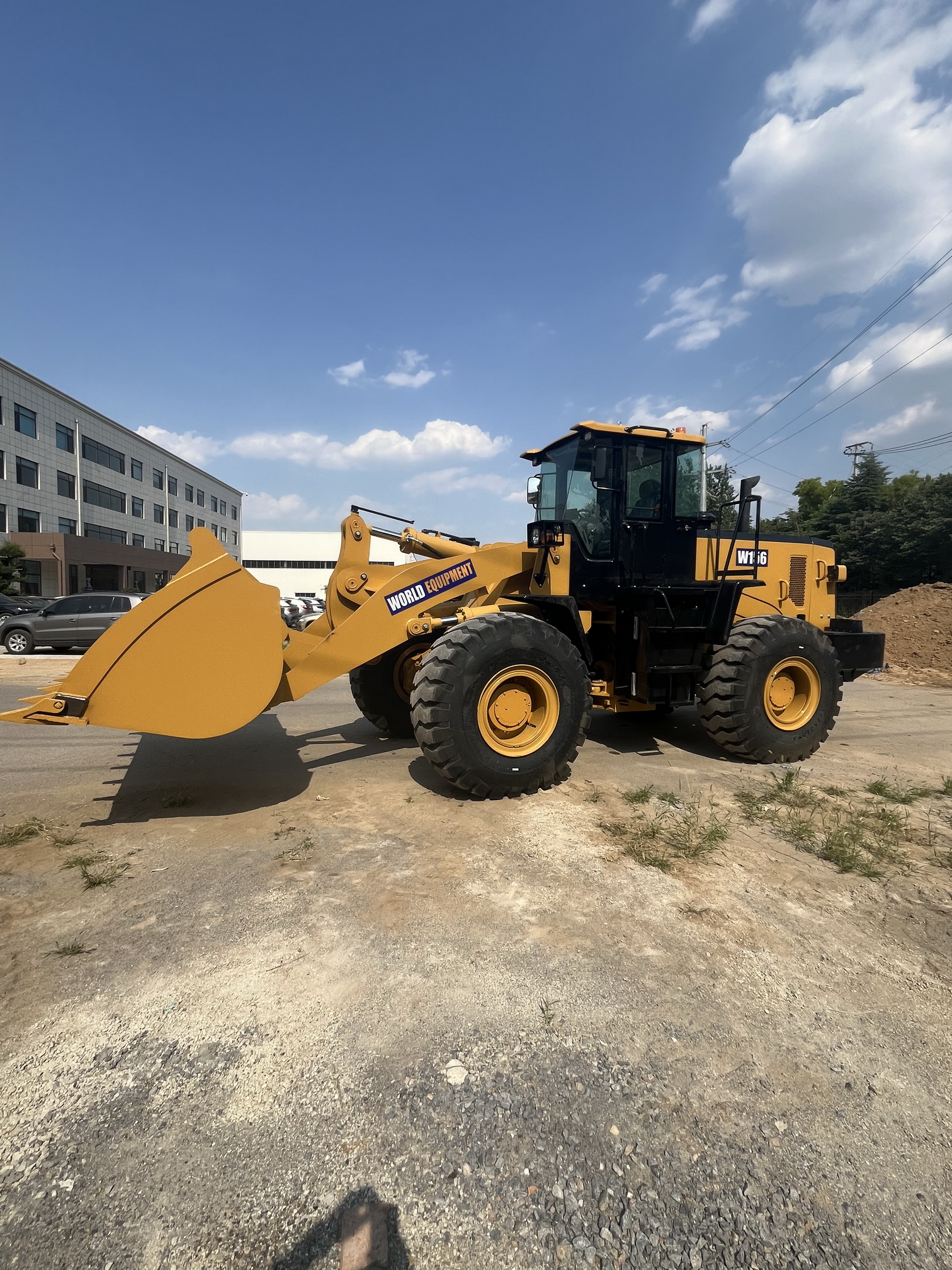

big Front end payloader with Cummins or shangchai or weichai engien 2.5-3.6 cbm bucket

Brand Name : WEA/WORLD

Model Number : W156

Place of Origin : CHINA

MOQ : one unit

Price : $36000-$43000

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000 units per year

Delivery Time : 20-30 working days

Packaging Details : by container

Rated load (Kg) : 5000

Operating weight(kg) : 16500

Max breakout force : ≥175KN

maximum tractive force : 145KN

maximum grade ability : 30℃

maximum dump height : 3142mm

maximum dump reach : 1250mm

overall dimension (L×W×H) : 8085×2965×3450mm

minimum turning radius : 6732mm

Engine Model : Shangchai C6121 engine

No. of cylinder-bore/stroke : 6－121×152mm

rated power : 162kw--2200r/min

maximum torque : 843N.m

min fuel-consume ratio : ≤215g/kw.h

gearbox mode : Power shift planetary structure

gear shift : 2 forward shift and1 reverse shift

maximum speed : 38km/h

fuel tank capacity : 292L

function of leveling automatically : yes

type specification : 23.5-25

Contact Now

big Front end payloader with Cummins or shangchai or weichai engien 2.5-3.6 cbm bucket

big Front end payloader with Cummins or shangchai or weichai engien 2.5-3.6 cbm bucket

big Front end payloader with Cummins or shangchai or weichai engien 2.5-3.6 cbm bucket

1.A name-brand Engine, high power, low oil-consumption, low noise and reliable performance.

2.Double turbine hydraulic torque converter,planet power shifting transmission and higher transmission efficiency.

 3.Reinforced axles by optimization of European technology has stronger bearing capacity, more stronger driving power and higher reliability
4.Rear frame with box structure, hinged panels with low stress and high strength steel——sturdy and durable；
5.Hydraulic parts and components such as cylinder, pump, valve all adapt domestic and international famous brands——stable and reliable.big Front end payloader with Cummins or shangchai or weichai engien 2.5-3.6 cbm bucket

big Front end payloader with Cummins or shangchai or weichai engien 2.5-3.6 cbm bucket
